14MP Cmos C Mount HDMI Microscope Camera Electronic Digital Eyepiece Measurement Software USB 2.0

14MP Cmos C Mount HDMI Microscope Camera Electronic Digital Eyepiece Measurement Software USB 2.0
  • Продавецxqnews.us
  • Список ценUS $133.42piece
  • Продажная ценаUS $133.42piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,4 (166)

Oписание продукта


Hot Commodity

13MP 1/3


HD 14MP HDMI 720P USB Digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder + 180X/300X C-MOUNT Lens


16MP 1080P FULL HD HDMI Industrial Microscope Camera Support 4G TF Card Storage Picture & Video Recorder+100X Zoom C-MOUNT Lens


16MP 1080P HD HDMI Industrial Microscope Camera Support 4G TF Card Storage Picture & Video Recorder+180X/300X Zoom C-MOUNT Lens


HD 1080P 40FPS HDMI VGA USB Digital Industrial Microscope Camera Adjustable LED Ring Light with +100X C-mount Lens


720p CMOS HDMI VGA Digital Electronic Microscope Camera+CCD 0.5X Eyepiece for Microscope Eyepiece C-mount Lens


14MP HDMI CMOS USB Industrial Electronic Eyepiece Digital Video Camera + 0.5X C-Mount for Biological Stereo Microscope


1080P 1/2.7



Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43*1.43um
Frame rate:30fps
Definition:FULL HD
Lens:CS for test, custom provide
White balance:Auto/manual
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:Support multi-color, 4 pcs of transverse lines/vertical lines, moveable
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
USB interface :Standard usb2.0 interface (Type B)
It build in digital crosshairs and color control, add line in the pictures, freeze
Supply USB2.0,HDMI HD video,Two output ports
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920 *1080 @ 30fps (for TF Card)
USB Video resolution: 1280 *720 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions


Magnification: 0.5X
Mounting Size: 23.2mm, 30mm ,30.5mm
C-mount Thread: 32TPI-UN-2A
Suit Microscope: biological microscope and stereo microscope

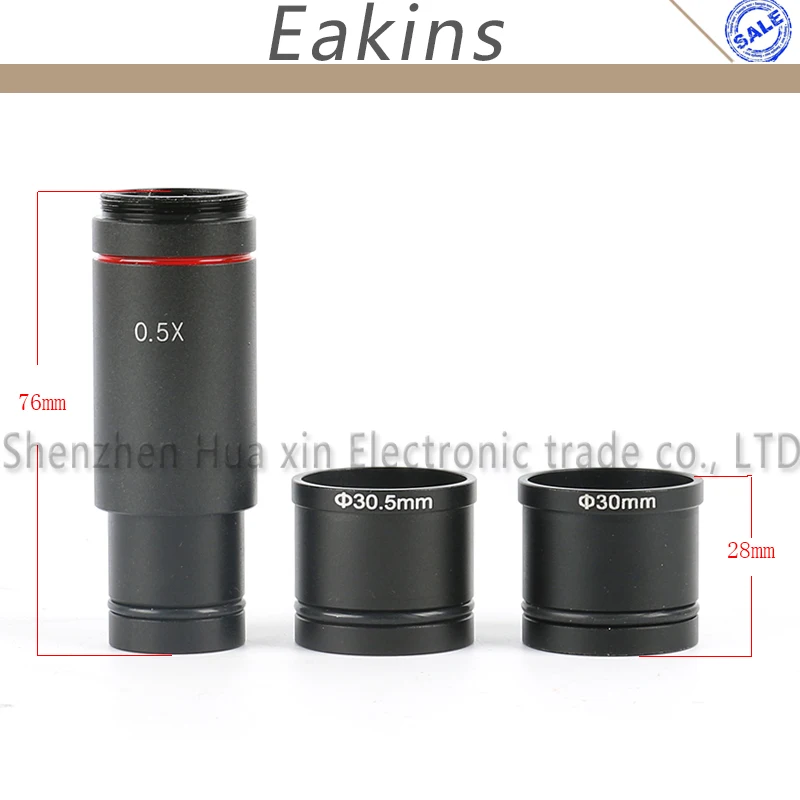

0.5X magnification to get a more wide view of microscope
C-MOUNT adapter to connect CCD camera or Digital eyepiece to microscope
Including two adapters from 23.2mm to 30mm and 30.5mm


Packing list:

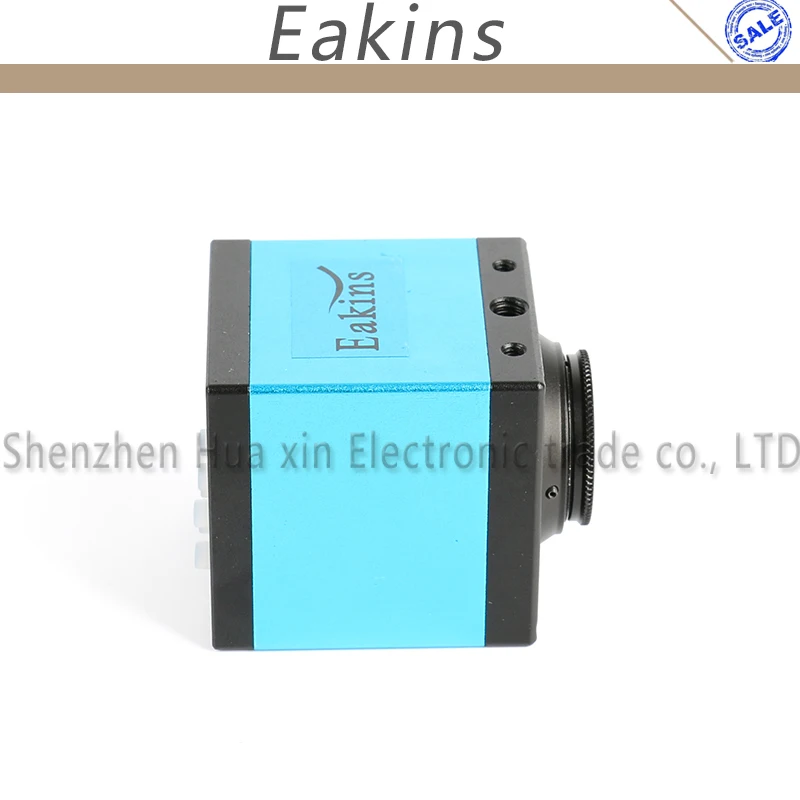

1 x Video Microscope Camera
1 x Power supply(AU/EU)
1 x Remote control
1 x USB Cable
1 x HDMI Cable
1x 0.5X C-MOUNT adapter
1x 23.2mm to 30mm adapter ring
1x 23.2mm to 30.5mm adapter ring




3 (2)0000000001000037
